Reel to Reel Rapid Test Dispenser

Home Products Large Scale Rapid Test Production Reel to Reel Dispenser Reel to Reel Rapid Test Dispenser

Reel to Reel Rapid Test Dispenser

  • Product Item:Reel to Reel Disnpenser DMYT018
  • Reel to Reel Dispenser with drying tower
  • NC membrane continuous dispensing
  • Category:Reel to Reel Dispenser
  • Inquiry Send Email

    Description

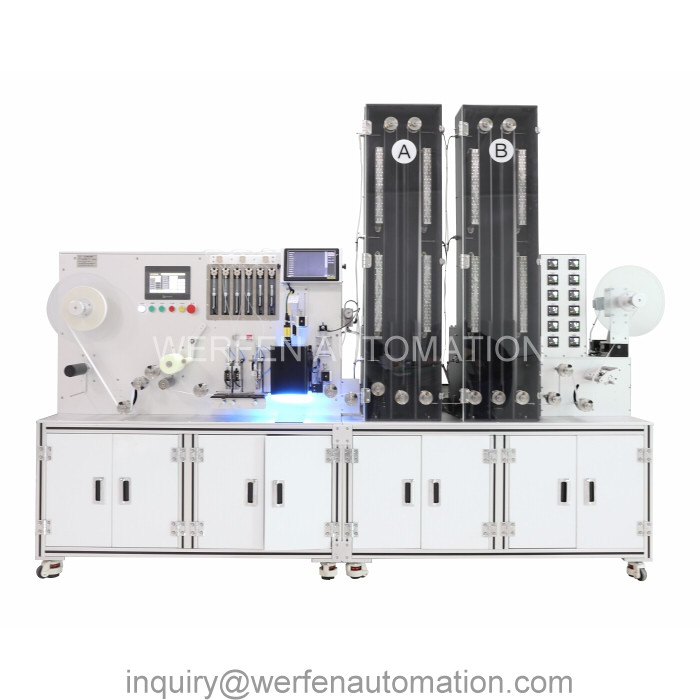

    Reel to reel Dispenser DMYT018


    The reel to reel Dispenser DMYT018 is used to dispense reagents or spray conjugates on reel format raw material, such as NC membrane and conjugate pad roll, then to dry them and recollect them in


    Products Features

    1. Suit for reel format membrane dispensing.
    2. Equipped with high resolution camera to detect defective parts and the system will ink mark it automatically.
    3. Highly automatic system, no worker needed after feeding the material.
    4. In the drying tower, temperature sensors are on all the important position to make sure the continuous monitoring.
    5. Touch screen operator interface terminal for simple setup and operation.
    6. Issue alarm and history records system, solution can be shown immediately.
    7. This is customized equipment according to customer's material type.







    Parameters

    Power:380V/6000W

    Drying tower temperature:up to 60℃±2℃

    Efficiency:40-120mm/s, about one 100m reel/30min

    Solution dispense way:touch stripping, spraying or dipping

    Dispensing precision:±1%

    Single drying tower distance:4870mm

    Material:NC membrane, conjugate pad reel

    Equipment weight  :430kg




    Typical User

    Runbio, Wondfo


    Video Link:

    https://youtu.be/BLYFtDOkCO8
